NORFOLK SOUTHERN
DIESEL LOCOMOTIVE ROSTER

EMD SD70ACe Nos. 1000-1174

175 Units Active (49 of those are currently stored)


Norfolk Southern Heritage Locomotives

Click here for information, roster and photo pages
for the NS EMD SD70ACe locomotives that have
been delivered or are scheduled for delivery
painted in special heritage paint schemes.



This roster compiled and maintained by Chris R. Toth.
Roster last updated on November 18, 2024.




Active Roster



Road No.

 Build Date Order No. Builder No. Notes
1000 02-2011 20106377 20106377-001 This unit equipped with HTCR6 trucks - see note at bottom of roster.
1001 02-2011 20106377 20106377-002
1002 02-2011 20106377 20106377-003 Unit currently stored, but still on the active roster.
1003 02-2011 20106377 20106377-004 Unit currently stored, but still on the active roster.
1004 02-2011 20106377 20106377-005
1005 02-2011 20106377 20106377-006 Unit currently stored, but still on the active roster.
1006 02-2011 20106377 20106377-007
1007 02-2011 20106377 20106377-008
1008 02-2011 20106377 20106377-009
1009 02-2011 20106377 20106377-010
1010 02-2011 20106377 20106377-011
1011 02-2011 20106377 20106377-012
1012 02-2011 20106377 20106377-013
1013 02-2011 20106377 20106377-014
1014 02-2011 20106377 20106377-015
1015 02-2011 20106377 20106377-016
1016 02-2011 20106377 20106377-017
1017 03-2011 20106377 20106377-018
1018 03-2011 20106377 20106377-019
1019 03-2011 20106377 20106377-020
1020 03-2011 20106377 20106377-021
1021 03-2011 20106377 20106377-022 Unit currently stored, but still on the active roster.
1022 03-2011 20106377 20106377-023 Unit currently stored, but still on the active roster.
1023 03-2011 20106377 20106377-024
1024 03-2011 20106377 20106377-025 Unit currently stored, but still on the active roster.

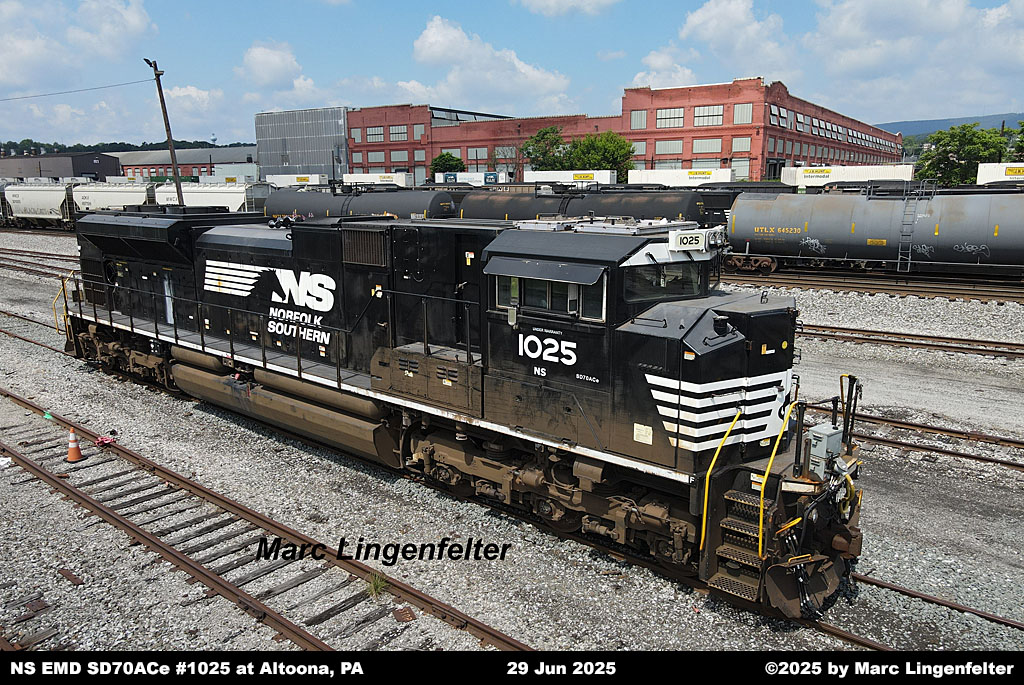

1025 10-2011 20116512 20116512-001 Unit currently stored, but still on the active roster.
1026 10-2011 20116512 20116512-002
1027 10-2011 20116512 20116512-003
1028 10-2011 20116512 20116512-004 Unit currently stored, but still on the active roster.
1029 10-2011 20116512 20116512-005
1030 10-2011 20116512 20116512-006
1031 10-2011 20116512 20116512-007
1032 10-2011 20116512 20116512-008
1033 10-2011 20116512 20116512-009
1034 10-2011 20116512 20116512-010 Unit currently stored, but still on the active roster.
1035 10-2011 20116512 20116512-011
1036 10-2011 20116512 20116512-012 Unit currently stored, but still on the active roster.
1037 10-2011 20116512 20116512-013
1038 10-2011 20116512 20116512-014
1039 10-2011 20116512 20116512-015
1040 10-2011 20116512 20116512-016 Unit currently stored, but still on the active roster.
1041 10-2011 20116512 20116512-017 Unit currently stored, but still on the active roster.
1042 10-2011 20116512 20116512-018
1043 10-2011 20116512 20116512-019
1044 10-2011 20116512 20116512-020 Unit currently stored, but still on the active roster.
1045 10-2011 20116512 20116512-021 Unit currently stored, but still on the active roster.
1046 10-2011 20116512 20116512-022
1047 10-2011 20116512 20116512-023 .
1048 10-2011 20116512 20116512-024
1049 10-2011 20116512 20116512-025
1050 10-2011 20116512 20116512-026
1051 10-2011 20116512 20116512-027 Unit currently stored, but still on the active roster.
1052 10-2011 20116512 20116512-028
1053 10-2011 20116512 20116512-029
1054 10-2011 20116512 20116512-030
1055 10-2011 20116512 20116512-031
1056 10-2011 20116512 20116512-032
1057 10-2011 20116512 20116512-033
1058 10-2011 20116512 20116512-034
1059 10-2011 20116512 20116512-035
1060 10-2011 20116512 20116512-036 Unit currently stored, but still on the active roster.
1061 10-2011 20116512 20116512-037
1062 10-2011 20116512 20116512-038
1063 10-2011 20116512 20116512-039
1064 10-2011 20116512 20116512-040
1065 05-2012 20116573 20116573-001 This unit is painted in special Savannah & Atlanta heritage scheme.
1066 05-2012 20116573 20116573-002 This unit is painted in special New York Central heritage scheme.
1067 05-2012 20116573 20116573-003 This unit is painted in special Reading Company heritage scheme.
1068 05-2012 20116573 20116573-004 This unit is painted in special Erie Railroad heritage scheme.
Unit currently stored, but still on the active roster.
1069 05-2012 20116573 20116573-005 This unit is painted in special Virginian Railway heritage scheme.
1070 05-2012 20116573 20116573-006 This unit is painted in special Wabash Railroad heritage scheme.
1071 05-2012 20116573 20116573-007 This unit is painted in special Central Railroad of New Jersey heritage scheme.
1072 05-2012 20116573 20116573-008 This unit is painted in special Illinois Terminal Railroad heritage scheme.
Unit currently stored, but still on the active roster.
1073 05-2012 20116573 20116573-009 This unit is painted in special Penn Central heritage scheme.
1074 05-2012 20116573 20116573-010 This unit is painted in special Delaware Lackawanna & Western heritage scheme.
1075 04-2013 20126746 20126746-001
1076 04-2013 20126746 20126746-002
1077 04-2013 20126746 20126746-003 Unit currently stored, but still on the active roster.
1078 04-2013 20126746 20126746-004
1079 04-2013 20126746 20126746-005
1080 04-2013 20126746 20126746-006 Unit currently stored, but still on the active roster.
1081 04-2013 20126746 20126746-007
1082 04-2013 20126746 20126746-008 Unit currently stored, but still on the active roster.
1083 04-2013 20126746 20126746-009 Unit currently stored, but still on the active roster.
1084 04-2013 20126746 20126746-010
1085 04-2013 20126746 20126746-011 Unit currently stored, but still on the active roster.
1086 04-2013 20126746 20126746-012 Unit currently stored, but still on the active roster.
1087 04-2013 20126746 20126746-013
1088 04-2013 20126746 20126746-014
1089 04-2013 20126746 20126746-015
1090 04-2013 20126746 20126746-016
1091 04-2013 20126746 20126746-017 Unit currently stored, but still on the active roster.
1092 04-2013 20126746 20126746-018
1093 04-2013 20126746 20126746-019
1094 04-2013 20126746 20126746-020 Unit currently stored, but still on the active roster.
1095 04-2013 20126746 20126746-021
1096 04-2013 20126746 20126746-022
1097 04-2013 20126746 20126746-023
1098 04-2013 20126746 20126746-024 Unit currently stored, but still on the active roster.
1099 04-2013 20126746 20126746-025
1100 02-2014 20126838 20126838-001
1101 02-2014 20126838 20126838-002
1102 02-2014 20126838 20126838-003
1103 02-2014 20126838 20126838-004 Unit currently stored, but still on the active roster.
1104 02-2014 20126838 20126838-005
1105 02-2014 20126838 20126838-006
1106 02-2014 20126838 20126838-007
1107 02-2014 20126838 20126838-008 Unit currently stored, but still on the active roster.
1108 02-2014 20126838 20126838-009
1109 02-2014 20126838 20126838-010 Unit currently stored, but still on the active roster.
1110 02-2014 20126838 20126838-011
1111 02-2014 20126838 20126838-012 Unit currently stored, but still on the active roster.
1112 02-2014 20126838 20126838-013
1113 02-2014 20126838 20126838-014 Unit currently stored, but still on the active roster.
1114 02-2014 20126838 20126838-015 Unit currently stored, but still on the active roster.
1115 02-2014 20126838 20126838-016
1116 02-2014 20126838 20126838-017
1117 02-2014 20126838 20126838-018 Unit currently stored, but still on the active roster.
1118 02-2014 20126838 20126838-019
1119 02-2014 20126838 20126838-020
1120 02-2014 20126838 20126838-021
1121 02-2014 20126838 20126838-022
1122 02-2014 20126838 20126838-023 Unit currently stored, but still on the active roster.
1123 02-2014 20126838 20126838-024
1124 02-2014 20126838 20126838-025
1125 11-2014 20136988 20136988-001
1126 11-2014 20136988 20136988-002
1127 11-2014 20136988 20136988-003
1128 11-2014 20136988 20136988-004 Unit currently stored, but still on the active roster.
1129 11-2014 20136988 20136988-005 Unit currently stored, but still on the active roster.
1130 11-2014 20136988 20136988-006 Unit currently stored, but still on the active roster.
1131 11-2014 20136988 20136988-007
1132 11-2014 20136988 20136988-008
1133 11-2014 20136988 20136988-009
1134 11-2014 20136988 20136988-010
1135 11-2014 20136988 20136988-011
1136 11-2014 20136988 20136988-012
1137 11-2014 20136988 20136988-013
1138 11-2014 20136988 20136988-014 Unit currently stored, but still on the active roster.
1139 11-2014 20136988 20136988-015 Unit currently stored, but still on the active roster.
1140 11-2014 20136988 20136988-016
1141 11-2014 20136988 20136988-017
1142 11-2014 20136988 20136988-018 Unit currently stored, but still on the active roster.
1143 11-2014 20136988 20136988-019
1144 11-2014 20136988 20136988-020
1145 11-2014 20136988 20136988-021
1146 11-2014 20136988 20136988-022
1147 11-2014 20136988 20136988-023 Unit currently stored, but still on the active roster.
1148 11-2014 20136988 20136988-024 Unit currently stored, but still on the active roster.
1149 11-2014 20136988 20136988-025
1150 11-2014 20136988 20136988-026
1151 11-2014 20136988 20136988-027 Unit currently stored, but still on the active roster.
1152 11-2014 20136988 20136988-028
1153 11-2014 20136988 20136988-029
1154 11-2014 20136988 20136988-030 Unit currently stored, but still on the active roster.
1155 11-2014 20136988 20136988-031
1156 11-2014 20136988 20136988-032 Unit currently stored, but still on the active roster.
1157 11-2014 20136988 20136988-033
1158 11-2014 20136988 20136988-034
1159 11-2014 20136988 20136988-035
1160 11-2014 20136988 20136988-036
1161 11-2014 20136988 20136988-037 Unit currently stored, but still on the active roster.
1162 11-2014 20136988 20136988-038
1163 11-2014 20136988 20136988-039
1164 11-2014 20136988 20136988-040
1165 11-2014 20136988 20136988-041
1166 11-2014 20136988 20136988-042
1167 11-2014 20136988 20136988-043
1168 11-2014 20136988 20136988-044 Unit currently stored, but still on the active roster.
1169 11-2014 20136988 20136988-045
1170 11-2014 20136988 20136988-046
1171 11-2014 20136988 20136988-047
1172 11-2014 20136988 20136988-048
1173 11-2014 20136988 20136988-049
1174 11-2014 20136988 20136988-050 Unit currently stored, but still on the active roster.


General Info

NS Model Designation = SD70ACe
Horsepower = See below
Fuel Tank Capacity = 4,900 gallons
Dynamic Braking = Yes
Control = Single
Cab Signals = Yes
LSL (Locomotive Speed Limiter) = Yes

Units 1000-1099 are rated at 4,300 horsepower.

Units 1100-1214 are rated at 4,500 horsepower.

Units 1000-1064 meet EPA Tier 2 emissions specifications.

Units 1065-1174 meet EPA Tier 3 emissions specifications.

All units are equipped with air conditioning.

All units are equipped with an electric parking brake.

All units are equipped for use in DPU (Distributed Power Unit) operation.

All units are equipped for ECP (Electronically Controlled Pneumatic) train braking.

All units are equipped with NS LEADER/PTC (Positive Train Control) system.

Units 1125-1174 equipped with piping in place to allow for future
equipment addition to all for eventual burning of LNG (Lquid Natural Gas).

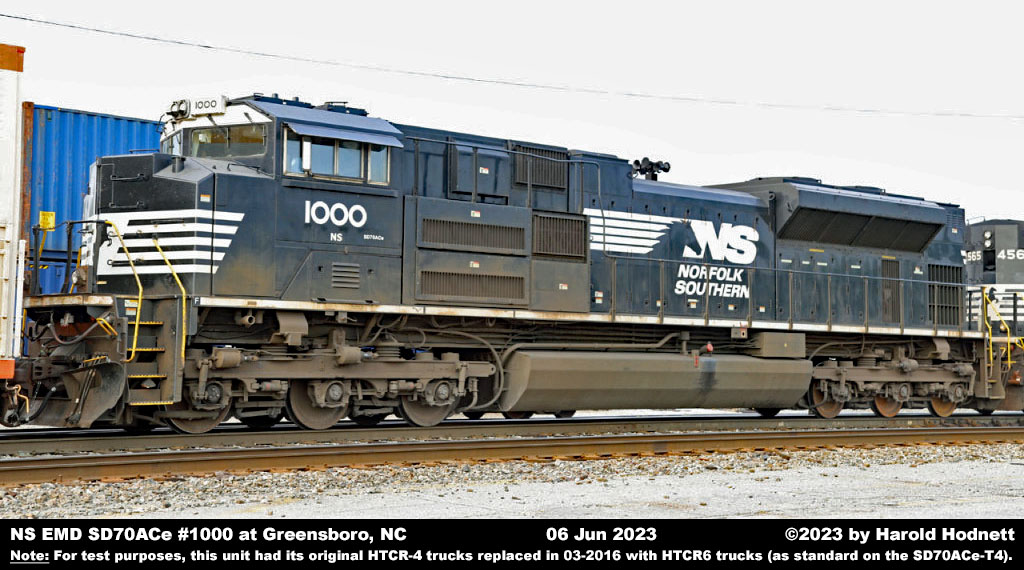

NS 1000 was retrofitted in March 2016 with a set of HTCR-6 trucks for testing. These are fabricated
trucks (rather than the normal cast), which are the standard used for the SD70ACe-T4 locomotives.
